BB-B※YZL型擺線轉子油泵電機組(立式)

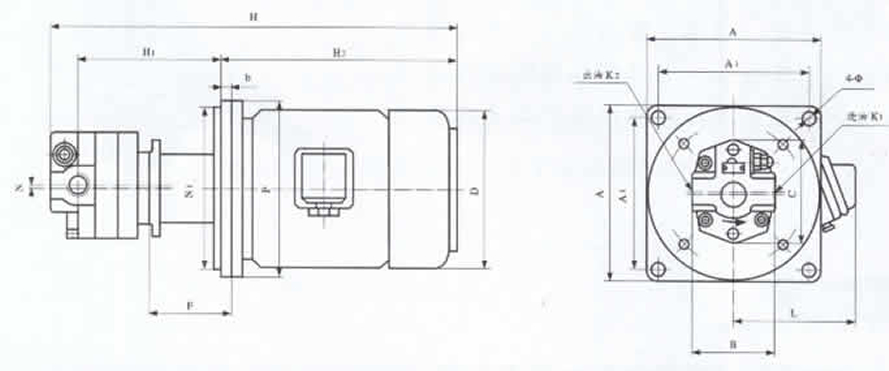

BB-B※YZL型擺線油泵電機組(立式)外形圖

BB-B※YZL型擺線油泵電機組(立式)技術規格

型號	電機型號	外形尺寸
		H	H1	H2	b	N	N1	P	D	A	A1	B	C	K1	K2	4-a	L	F
BB-B4YZL	JW6324	329	110	210	10	2	a120	140	126	140	126	72	92	Z3/8"		10	97	70
BB-B6YZL		352	115
BB-B10YZL		361	124
BB-B16YZL	JW7114	432	155	247	12	3	a130	150	144	150	130	95	117	Z3/4"		12	106	95
BB-B25YZL	JW7124	441	164
BB-B40YZL	Y802-4	458	168	257	12	4	a180	200	165	200	165	110	134	Z3/4"		12	150	95
BB-B50YZL	Y90S-4	481	176	272					175								155	98
BB-B63YZL		488	183
BB1-B63YZL														Z1"	3/4"
BB2-B63YZL														Z1"	Z1"
BB-B80YZL	Y90L-4	539	192	300	15	5	a200	200	175	250	210	130	154	Z1"		13	155	110
BB-B100YZL		546	199
BB-B125YZL	Y100L1-4	595	213	335			a235	250	205								180
BB1-B125YZL														Z1/4"	Z1"
BB2-B125YZL														Z1/4"	Z1/4"

備注：需配防爆電機及變動電機功率，訂貨請注明
